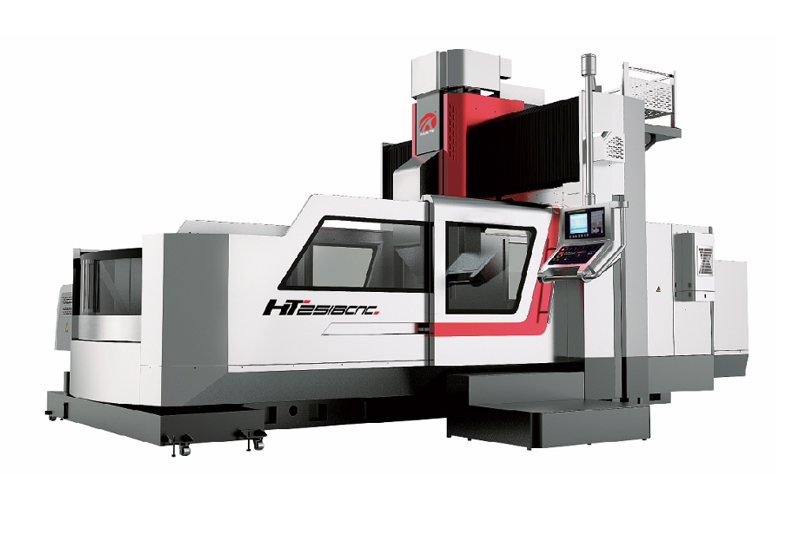

Gantry machining center 15/18/26/32/40 series

HUATE-2015/2518/3026/4026/5026/4032/5032/6032/8032/5040/6040/8040

Product Features

  • The machine bed, column, and slide are all constructed from high-quality cast iron, ensuring exceptional durability and strength. The column features an integral frame structure, exhibiting excellent thermal symmetry and structural stability.
  • The machine tool incorporates an integral insert protective cover for the X and Y axes, ensuring smooth and rapid movements. The overall machine tool protection features a double-layer anti-splash fully enclosed structure, enhancing aesthetics, maintaining a cleaner environment, and promoting safer operations.
  • The machine tool utilizes high-precision ball screws and linear roller guides for the XYZ axis. By incorporating advanced European manufacturing technology, the machine toot achieves rapid movement, precise positioning, and eliminates crawling at low speeds.
  • The mounting surface of the linear roller guide undergoes precision machining using advanced technology, guaranteeing the machine tool's exceptional, stable, and long-lasting geometric accuracy.
  • To ensure smoother and more precise motion control, all Huate machine tools are equipped with a new generation of digital servo motors and high-resolution encoders for each axis. These advancements, coupled with significant software and motor control system enhancements, result in improved surface processing quality and overall processing performance. This combination delivers superior value for money, offering enhanced results and productivity.
Product parameters

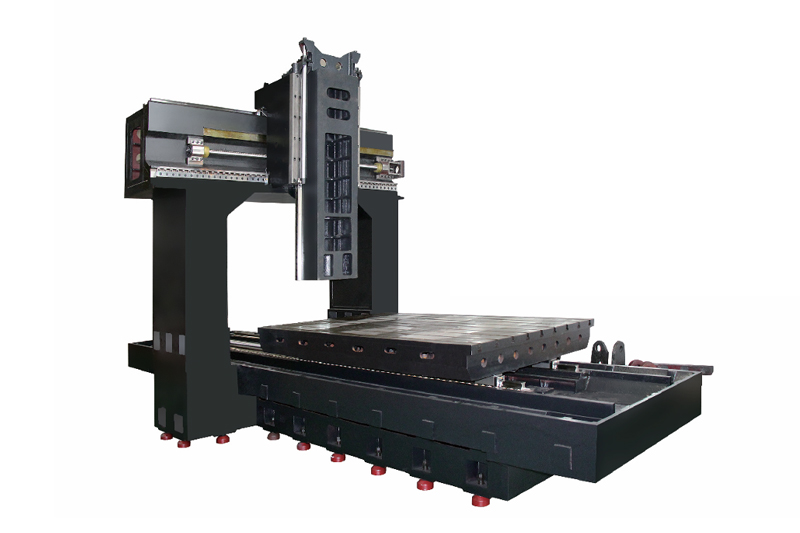

Beam

The stepped L-shaped design enhances rigidity, while the recessed C-shaped structure provides superior bending resistance

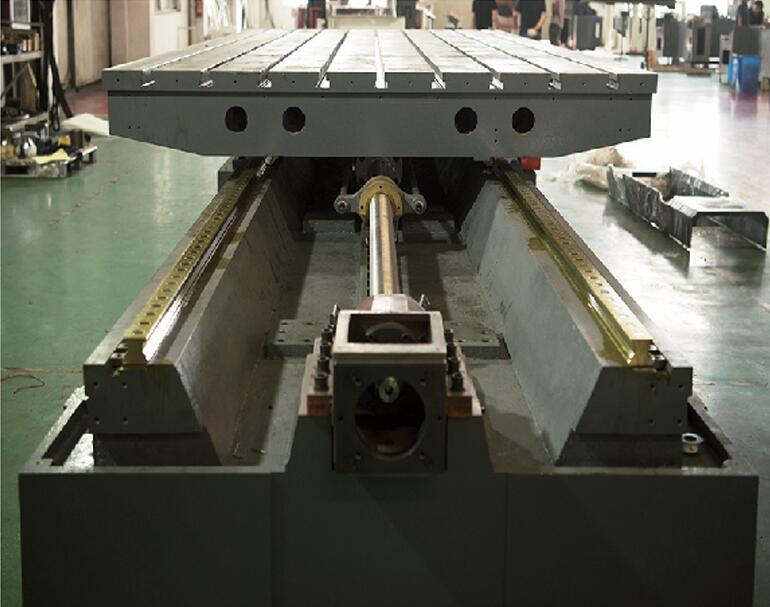

Base

The machine incorporates an oversized 'T.-shaped double-layer box base, meticulous-ly scraped at each joint to ensure exceptional stability and durability. It utilizes larger screws and linear rails compared to similar models, ensuring high rigidity and overall stability. The integrated built-in oil-water separation and eyebrow row structure promote environmental friend ness and cost savings for the entire machine.

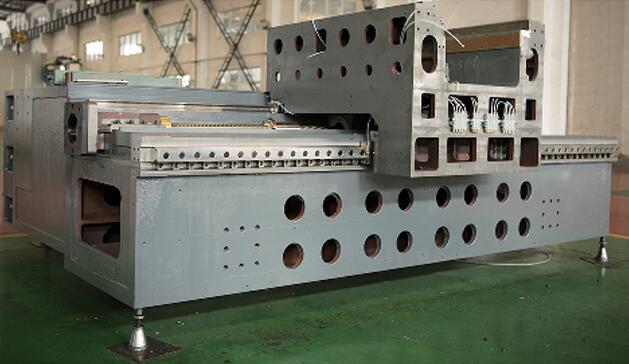

Column

The machine features a closed "back" type double-layer casting structure, construct-ed from high-quality Meehanite standard cast iron. It undergoes dual electric furnace aging to ensure long-term seismic resistance and prevent deformation. Additionally, at least 80% of the column range aligns with the guide rail, ensuring that the linear rail support is equivalent to that of a hard rail support.




   HT-2015 HT-2518 HT-3026 HT-4026 HT-5026 HT-4032
Machining range
X-axis travel mm 2000 2500 3000 4000 5000 4000
Y-axis travel mm 1500 1800 1800 2600 2600 3200
Z-axis travel mm 800 800 1000 1000 1000 1000
Effective Width of Gantry mm 1600 1800 2600 2600 2600 3200
Spindle to worktable distance mm 200-1000 200-1000 200-1200 200-1200 200-1200 200-1200
Worktable
Worktable Size mm 2000*1300 2500*1600 3000*2100 4000*2100 5000*2100 4000*2500
Worktable Load Capacity kg 6000 10000 12000 15000 17000 20000
T-slot(Width*Spacing) mm 22*180 22*180 28*220 28*220 28*220 28*220
Spindle
Spindle Drive Method   Belt Belt Belt Belt Belt Belt
Spindle Speed rpm 6000 6000 6000 6000 6000 6000
Spindle Power kw 18.5-22 15-22 15-22 15-22 15-22 15-22
Spindle Torque N.m 143 249-442 249-442 249-442 249-442 249-442
Spindle Taper/Pull Stud   BT50/45° BT50/45° BT50/45° BT50/45° BT50/45° BT50/45°
Drive Feed
Rapid Displacement X/Y/Z m/min 12/10/10 12/10/10 12/10/10 12/10/10 12/10/10 8/10/10
Max Chip Removal Speed X/Y/Z m/min 8 8 8 8 8 6
Minimum Resolution mm 0.001 0.001 0.001 0.001 0.001 0.001
Accuracy
Positioning X/Y/Z mm ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300
Repeatability X/Y/Z mm ±0.004/300 ±0.004/300 ±0.004/300 ±0.004/300 ±0.004/300 ±0.004/300
Others
Guide Rail Specification mm 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail
Screw Rod Specification mm 63/50/50 80/63/50 80/63/50 80/63/50 80/63/50 80/63/50
Servo Motor Power X/Y/Z kw 3/3/3 6/7/7 6/7/7 9/7/7 9/7/7 9/7/7
Power Requirement kw 40 40 40 60 60 60
Machine Tool Size mm 7700
6000
4700		 8900
6000
4700		 9900
6500
5000		 11900
6500
5000		 13000
6500
5000		 11900
7550
5200
Approximate Machine Weight t 19 23 34 42 46 45



   HT-5032 HT-6032 HT-8032 HT-5040 HT-6040 HT-8040
Machining range
X-axis travel mm 5000 6000 8000 5000 6000 8000
Y-axis travel mm 3200 3200 3200 4000 4000 4000
Z-axis travel mm 1000 800 1000 1000 1000 1000
Effective Width of Gantry mm 3200 3200 3200 4000 4000 4000
Spindle to worktable distance mm 200-1200 200-1200 200-1200 200-1200 200-1200 200-1200
Worktable
Worktable Size mm 5000*2500 6000*2500 8000*2100 5000*3100 6000*3100 8000*3100
Worktable Load Capacity kg 25000 25000 30000 25000 25000 30000
T-slot(Width*Spacing) mm 28*220 28*220 28*220 28*220 28*220 28*220
Spindle
Spindle Drive Method   Belt Belt Belt Belt Belt Belt
Spindle Speed rpm 6000 6000 6000 6000 6000 6000
Spindle Power kw 15-22 15-22 15-22 15-22 15-22 15-22
Spindle Torque N.m 249-442 249-442 249-442 249-442 249-442 249-442
Spindle Taper/Pull Stud   BT50/45° BT50/45° BT50/45° BT50/45° BT50/45° BT50/45°
Drive Feed
Rapid Displacement X/Y/Z m/min 8/10/10 8/10/10 8/10/10 8/10/10 8/10/10 8/10/10
Max Chip Removal Speed X/Y/Z m/min 6 6 6 6 6 6
Minimum Resolution mm 0.001 0.001 0.001 0.001 0.001 0.001
Accuracy
Positioning X/Y/Z mm ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300 ±0.005/300
Repeatability X/Y/Z mm ±0.004/300 ±0.004/300 ±0.004/300 ±0.004/300 ±0.004/300 ±0.004/300
Others
Guide Rail Specification mm 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail 55/55/ZAxis hard rail
Screw Rod Specification mm 80/63/50 80/63/50 80/63/50 80/63/50 80/63/50 80/63/50
Servo Motor Power X/Y/Z kw 9/7/7 9/7/7 9/7/7 9/7/7 9/7/7 9/7/7
Power Requirement kw 60 60 60 60 60 60
Machine Tool Size mm 15650
7550
5200		 16650
7550
5200		 19550
7500
5200		 15650
7550
5200		 16650
7550
5200		 19550
7550
5200
Approximate Machine Weight t 60 64 78 62 66 80

*Note: Our company's products are constantly improving. If there are any changes to the above information, no further notice will be given, and the technical documents shall prevail.

Standard configuration:

1. CNC system FANUC Oi MF (1)

2. Spindle constant temperature cooling system

3. Z-axis hydraulic balance system

4. Pneumatic, hydraulic, and centralized lubrication systems

5. Tool cooling system

6. Screw track chip conveyor

7. Tri color lamps and lighting fixtures

8. Automatic power-off device

9. Standard attachments and related documents

10. Common maintenance tools

Option configuration:

1. Spindle direct connection 10000 revolutions per minute (Setco)

2. BF gearbox (1:4)

3. Z-axis track

4.24/32/40/60 knife magazine

5. Water outlet from the spindle center

6. Side milling head (manual/semi-automatic/fully automatic)

7. Each axis grating ruler

8. Workpiece probe

9. Tool presetter
